MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars

Name: MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars
Brand: PRIUS,XINYI or OEM
Price: 1 USD

Cheap MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars wholesale

Brand Name : PRIUS,XINYI or OEM

Model Number : MAL

Place of Origin : Ningbo,China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 20000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

Material : Aluminum

Working Medium : Air

Max Pressure : 13.50Kgf/cm²

Temperature Range : 0-70℃

Thread : with muffer

Contact Now

Mini Pneumatic Cylinder Aluminum Alloy tube with special design for Volkswagen cars

MA standard stainless steel mini double acting Pneumatic air cylinder Bore size 16mm-40mm

Quick Detail:

* ISO 6432 standard mini pneumatic air cylinder

* With magnet,air buffer adjustable or rubber cushion for choice

* Stainless steel barrel,Aluminum tube can be optional

* Piston rod #45(ASTM-1045) steel chrome-plated

* Stainless steel piston rod is available

* With guide plate type available

* With self-lubricating bearing,lubrication free

* Bore size 8mm, 10mm,12mm,16mm,20mm,25mm,32mm,40mm,50mm,63mm

* Cylinder kits and accessories available

Specifiction

MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars

Stroke

Bore(mm)	Standard Stroke			Max.Stroke	Permissible Stroke

16	25 50 75 80 100 125 160 175 200			300	500
20	25 50 75 80 100 125 160 175 200	250 300		500	650
25	25 50 75 80 100 125 160 175 200	250 300	350 400 450 500	500	650
32	25 50 75 80 100 125 160 175 200	250 300	350 400 450 500	500	650
40	25 50 75 80 100 125 160 175 200	250 300	350 400 450 500	500	650

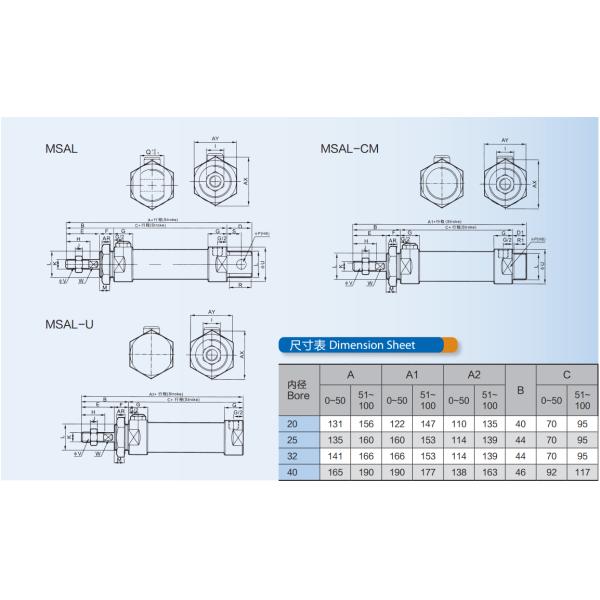

Overall Dimension
